Mercedes Sprinter Automatic Transmission Problems

Mercedes Sprinter Automatic Transmission Problems — Torque Converter Failure

Mercedes Sprinter Automatic Transmission Problems, similar to  Mercedes Vito vans, are the backbone of trades, courier fleets, and touring setups across Australia. They are famous for their diesel engines, practicality, and ability to clock up massive kilometres without breaking a sweat. But talk to any owner who has lived with one for more than a few years and you’ll hear a familiar story: the transmission doesn’t feel right. Shudders at highway speed, slow engagement into drive, or that dreaded limp mode warning on the dash. The culprit behind many of these headaches is not always the entire gearbox but a single, hardworking component hidden inside it — the torque converter.

At Brisbane Tuning & Turbo, we see these vans every week, and more often than not, the fault codes point to torque converter clutch failure. Recently, we opened one up, part number Mercedes-Benz Sprinter, that looked fine on the outside but told a very different story inside. Shiny casing, no leaks, just the usual wear. But once the housing was split apart, it was obvious this converter had been slipping for months. Fractured lock-up clutch tabs, burnt fluid staining, and turbine vanes cooked dark by heat cycles were enough to prove the point. What looked like healthy German engineering from the outside was hiding catastrophic wear inside.

This article will walk Sprinter and Vito owners through the symptoms of torque converter failure, the fault codes that point directly at it, why these failures happen in the first place, and the options available for repair. We’ll also cover why acting early saves thousands, how preventive maintenance really works, and why fleet operators in particular cannot afford to ignore these issues. By the end, you’ll understand how a single part can bring down an entire van — and what you can do to prevent it.

What the Torque Converter Does

The torque converter is essentially the bridge between the engine and the transmission. Instead of a traditional clutch, it uses a fluid coupling to transfer power. Inside, a pump spins with the engine and drives transmission fluid onto a turbine, which spins the gearbox input shaft. To add efficiency, modern converters include a lock-up clutch. This clutch engages at cruising speeds to eliminate slip, improving fuel economy and lowering heat.

For a heavy van like a Sprinter or Vito, the torque converter isn’t just an accessory. It’s the part that allows a heavily loaded vehicle to pull away smoothly without stalling and cruise at highway speeds without wasting diesel. It also cushions the drivetrain against sudden torque spikes from towing or steep hill climbs. When the converter works, the van feels effortless. When it fails, the entire transmission feels sick. Because Sprinters rely so heavily on torque converter clutch engagement for efficiency, any slip is magnified into shudder, poor fuel use, and eventually limp mode.

Case Study: Torn-Down Converter

The converter we mentioned earlier came out of a Mercedes Sprinter that presented with classic symptoms. The driver reported vibrations on the highway, a delay when selecting drive in the mornings, and a check engine light that returned even after clearing the codes. On the bench, the unit looked fine. Once opened, though, the damage told its own story.

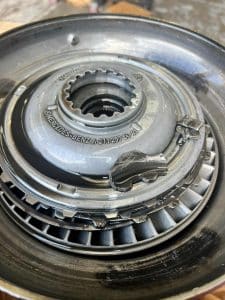

The lock-up clutch section showed fractured and bent steel tabs, one of which was close to breaking away completely. The friction surface was glazed and burnt, clearly having slipped for extended periods. The turbine blades were coated in darkened ATF, the sort of heat staining that only comes from chronic overheating. The fluid smelled burnt and had a metallic sheen when drained. This was not the first time we had seen it, and it won’t be the last.

The best way to describe this converter is like a worker who shows up in a clean uniform but is nursing a broken back. From the outside, you’d think everything is fine. From the inside, it’s barely holding together. For fleet owners and tradespeople, this is a reality check: your van might still be running, but internally the converter may already be screaming for help.

Common Symptoms of Torque Converter Failure

The earliest sign many Mercedes Sprinter and Vito drivers notice is a shudder at light throttle when cruising at highway speed. It feels like driving over corrugations that aren’t there. This shudder in a Mercedes Sprinter is caused by the torque converter clutch attempting to lock up but slipping instead. The shudder can come and go, making it easy to dismiss until it becomes a daily frustration.

Another telltale symptom is harsh or delayed engagement when shifting into drive or reverse, particularly in the morning when the van is cold. The converter has drained back overnight, the seals and pump are worn, and it takes a moment to build pressure. Drivers often laugh it off when their coffee spills from the jolt, but it is an early warning sign.

Loss of power and poor fuel economy also creep in. When the converter clutch slips, the engine works harder to maintain speed. Fuel efficiency drops, and the van feels sluggish. Many Mercedes Sprinter owners mistake this for engine issues when in reality the problem is hydraulic slip inside the converter.

And then there is the check engine light. Transmission fault codes appear, sometimes intermittently, sometimes locking the van into limp mode. These codes almost always lead back to the torque converter, even if the description points to solenoids or circuits. By the time codes appear alongside shudder, the converter has usually been failing for months.

Mercedes Sprinter Fault Codes That Point to Converter Problems

Mercedes Sprinters are sophisticated enough to tell you when the transmission isn’t happy. Three fault codes come up repeatedly when the torque converter is failing. Mercedes Sprinter Automatic Transmission Problems usually can be linked with the following codes:

P0741 is the classic in a Mercedes Sprinter.

This Mercedes Sprinter Automatic Transmission Problems code means the torque converter clutch was commanded to lock, but slip was detected. The transmission control module compares engine speed to turbine speed, and when they don’t match during lockup, the code is set. On the road, this corresponds to the rumble and shudder you feel at cruise.

P0740 is slightly different.

Mercedes Sprinter Automatic Transmission Problems code describes a torque converter clutch circuit malfunction. This can mean solenoid problems, wiring issues, or hydraulic control faults. In the Mercedes Sprinter, it usually appears once converter wear has already started, because the lock-up clutch is demanding more applied pressure than the system can provide.

P2767 is the third piece of the puzzle.

This means the pressure control solenoid for the torque converter clutch is stuck off. In other words, the Mercedes Sprinter ECU asked for clutch engagement but saw no change in turbine speed because the hydraulic pressure never arrived. This often indicates valve body wear or contamination from converter debris.

Seeing one of these codes is a cause for concern. Seeing all three at once means the torque converter is well past its best, and a rebuild is required immediately. Mercedes subcodes sometimes add more detail, but for most owners, the headline codes are enough to show it is converter time.

Why do these Mercedes Sprinter Automatic Transmission Problems Happen?

It is easy to think German engineering should last forever, but the reality is that Mercedes Sprinter torque converters are wear items. Mercedes Sprinter are workhorses and spend their lives hauling heavy loads or doing stop-start courier runs. Over 120,000 to 200,000 kilometres, that workload adds up.

The lock-up clutch lining eventually wears down, especially under heavy towing or urban use, where the clutch is asked to engage and disengage constantly. Long factory fluid intervals of 120,000 kilometres or more turn the ATF into a brown, degraded soup. That fluid loses its protective qualities and accelerates wear.

Valve body wear also plays a role. When solenoid bores wear, the torque converter clutch doesn’t get full apply pressure. It starts slipping and generating heat. Pump and seal wear add to the mix, causing fluid to drain back overnight and making every cold start a struggle.

Once slip begins, it becomes a vicious cycle. Heat builds rapidly, glazing the clutch, cooking the fluid, and spreading metallic debris through the transmission. One customer we saw ignored early shudder for months until the converter effectively grenaded itself, sending debris into the valve body and pump. What could have been a $2,500 converter rebuild turned into a $9,000 transmission replacement.

The BTT Repair Process

At Brisbane Tuning & Turbo, we approach Sprinter transmission faults systematically. First, we scan the van and record freeze-frame data. Codes like P0741, P0740, and P2767 give us a starting point. Then we inspect the ATF fluid and filter. Burnt smell or metallic particles in the pan confirm that the converter has been overheating and shedding material.

We then move to valve body testing. Solenoids are checked for correct resistance and hydraulic function. This tells us whether the converter fault is purely mechanical or partly due to control pressure problems. If the valve body is compromised, it is addressed alongside the converter.

The torque converter is then removed and rebuilt. The lock-up clutch lining is replaced, internal tolerances are restored, and any fractured or heat-damaged parts are repaired. The unit is reassembled, pressure tested, and refitted. The valve body and cooler are flushed, fresh Mercedes ATF is filled, and adaptations are reset. Finally, we road test the van to ensure smooth engagement and lock-up with no codes returning.

The result is a transmission that feels like new again without the cost of full replacement. By addressing both the converter and any valve body wear, we ensure the fix lasts.

Full vs Partial Rebuild

Not every Mercedes Sprinter needs the nuclear option. When converter faults are caught early, a partial rebuild can be enough. This involves replacing the lock-up clutch lining, restoring clearances, and flushing the cooler and valve body. It is cheaper and quicker, ideal for vans that still drive well but show early codes or light shudder.

When problems have been ignored and debris is circulating, a full rebuild is the only smart choice. This includes torque converter rebuild, valve body overhaul, pump inspection, and clutch pack checks. It costs more upfront but prevents comebacks and protects the fleet from extended downtime.

At Brisbane Tuning & Turbo we don’t guess which path to take. Diagnostics drive the decision. Fleet operators in particular appreciate this, because the cheapest repair is not always the best repair if it leads to repeat jobs. A full rebuild might cost more in the moment but saves far more over the lifespan of the van.

Fleet Owner Section: Downtime Math

For trades and courier fleets, the biggest cost of torque converter failure is not the repair invoice but the downtime. Every day a van is off the road is a day of missed deliveries, cancelled jobs, or frustrated clients. That lost revenue often dwarfs the cost of the rebuild itself.

If a courier van misses thirty deliveries in a day because of limp mode, the revenue loss may exceed a thousand dollars. Multiply that by a week in the workshop, and the downtime cost is five to ten times the repair cost. Tradespeople face the same pain. A plumber or electrician with a dead van can’t earn, and hiring a replacement vehicle eats into margins.

That is why early diagnosis matters. A Transmission Health Check at the first sign of shudder or a single fault code costs little compared to the alternative. By catching converter faults before they cascade into a full transmission replacement, fleet owners keep vehicles earning instead of waiting.

Preventive Maintenance & Myths

One of the biggest myths in Mercedes Sprinter ownership is that transmissions are “sealed for life.” This is a phrase that should come with a disclaimer, because no transmission fluid lasts the life of a van that covers hundreds of thousands of kilometres. Leaving ATF in place for 120,000 kilometres or more is a recipe for converter failure. In reality, fluid should be changed every 30,000 to 40,000 kilometres to keep the transmission healthy.

Adaptation resets are another overlooked step. When new parts are fitted, the ECU still holds onto old shift parameters. Resetting adaptations allows the transmission to relearn with the restored hydraulic pressures and tolerances. Skipping this step can leave even a freshly rebuilt converter feeling rough.

Preventive maintenance is simple: shorter fluid intervals, periodic scans to catch early codes, and listening to the van when symptoms appear. Myths about lifetime fluid are expensive; reality saves money.

Final Thoughts & Call to Action

The torque converter we tore down, with broken clutch tabs, burnt surfaces, and heat-stained turbine vanes, was not unusual. It was typical of what happens when Mercedes Sprinter and Vito owners ignore early warning signs. Shudder, delayed engagement, fault codes like P0741, P0740, and P2767 — these are not quirks, they are cries for help from your transmission.

The difference between a $3,500 rebuild and a $10,000 replacement is often just timing. Acting early means lower cost, less downtime, and vans that stay earning instead of sitting on a hoist.

At Brisbane Tuning & Turbo, we specialise in Mercedes Sprinter diagnosing and repairing Mercedes Sprinter transmission problems the right way. Whether your van needs a partial converter rebuild, a full transmission overhaul, or just a Health Check for peace of mind, we’re here to keep your fleet on the road.

If your Sprinter is showing symptoms, don’t wait. Call Brisbane Tuning & Turbo today to book a Transmission Health Check before a small fault becomes a major rebuild.
