Top 10 Transmission Faults in Aussie 4WDs and How to Actually Fix Them.

If you drive a Ranger, HiLux, D-MAX, Triton, or similar diesel 4WD, transmission problems aren’t a matter of “if” — they’re a matter of when, especially if you tow, tour, or load the vehicle regularly.

The problem is not just the faults themselves.

It’s how often they are misdiagnosed.

Most workshops:

• clear codes
• change fluid
• or recommend full replacement

Without ever identifying the real cause.

At Brisbane Tuning & Turbo, we approach it differently.

Every fault has a pattern
Every pattern has a root cause
And every root cause has a specific fix

This guide breaks down the most common transmission faults we see in Australian 4WDs — what they actually mean, how they develop, and how to fix them properly.

Quick Navigation — Common Transmission Faults

• P0741 – Torque Converter Clutch Failure
• P2714 – HiLux Valve Body Pressure Fault
• P2757 – Ranger Converter Lock Fault
• P0700 – Gateway Transmission Code
• P0744 – Intermittent Converter Slip
• P2700 / P2703 – Pressure Delay Faults
• Converter Shudder (No Code)
• Harsh Shifting Cold
• Delayed Engagement
• Limp Mode After Load

How to Use This Guide

If your ute is already showing a fault code:

Scroll directly to that code and read the full breakdown.

If your vehicle has symptoms but no codes:

Look for sections like shudder, harsh shifting, or delayed engagement.

If you’re towing or planning upgrades:

Use this guide to understand what fails first — and how to prevent it.

DIY Transmission Checks Before Visiting a Workshop

Before assuming your automatic transmission needs rebuilding, there are several simple observations you can make that will help narrow down the possible cause of the problem.

These checks won’t replace professional diagnostics, but they can provide valuable information and help avoid unnecessary repairs.

Does the problem happen only when the transmission is cold?

If harsh shifting, delayed engagement or unusual noises disappear once the transmission reaches operating temperature, the problem is often related to hydraulic pressure rather than severe internal mechanical damage.

Cold-only symptoms frequently point towards valve body wear, pressure leakage or front pump sealing issues.

Does the problem only occur after the transmission is hot?

If your transmission behaves normally for the first 20 to 30 minutes before developing shudder, slipping or harsh shifting, excessive heat is usually involved.

Heat affects transmission fluid viscosity, clutch friction characteristics and hydraulic pressure regulation. Problems that only appear once the transmission is hot should never be ignored, particularly if the vehicle is regularly used for towing.

Does towing make the symptoms worse?

Many transmission faults only become obvious when the gearbox is working hard.

If your vehicle drives normally around town but begins slipping, shuddering or entering limp mode while towing, climbing long hills or carrying heavy loads, this strongly suggests the transmission is struggling to maintain correct hydraulic pressure or torque converter lock-up.

Always mention this to your workshop because it is one of the most useful diagnostic clues.

Does Sport Mode or Manual Mode change the behaviour?

This is one of the simplest checks you can perform.

Many automatic transmissions use different converter lock-up strategies and shift pressures in Sport Mode or Manual Mode.

If the shudder disappears in Sport Mode, or the transmission behaves differently when manually selecting gears, the problem often involves the torque converter clutch or valve body rather than the engine.

This information can significantly reduce diagnostic time.

Is the transmission fluid clean?

Transmission fluid should normally appear clean and bright red or amber, depending on the manufacturer.

Dark brown or black fluid, a burnt smell or visible metallic particles indicate overheating or internal wear.

However, remember that clean-looking fluid does not necessarily mean the transmission is healthy. Many torque converter and valve body faults occur long before the fluid shows obvious signs of damage.

Does restarting the vehicle temporarily fix the problem?

If switching the ignition off and restarting the vehicle restores normal operation, the transmission has probably entered a protective strategy known as limp mode.

Although the symptoms disappear temporarily, the underlying fault remains and should be investigated before additional damage occurs.

Does the transmission slip, or does the engine misfire?

These two problems are often confused.

A slipping torque converter usually causes engine speed to rise smoothly without a corresponding increase in vehicle speed.

An engine misfire feels more like repeated hesitation or uneven power delivery and is often accompanied by engine-related fault codes.

Correctly identifying the difference saves considerable time during diagnosis.

Are there any warning lights?

Even if the Check Engine Light isn’t illuminated, your transmission may already have stored pending or manufacturer-specific fault codes.

Many transmission problems begin long before the warning light appears.

Professional diagnostic equipment can often retrieve these early warning signs before they develop into major failures.

Record When the Symptoms Occur

Before visiting a workshop, make a note of exactly when the problem happens.

Useful observations include:

• Cold or hot transmission

• Light acceleration or heavy acceleration

• Highway speed or city driving

• Towing or unloaded driving

• Particular gears where the problem occurs

• Whether the symptoms improve after restarting the vehicle

These observations are often just as valuable as the fault codes themselves and can significantly shorten the diagnostic process.

The One Pattern Behind Most Transmission Failures

Across all platforms — Ranger, HiLux, D-MAX, Triton — the failure pattern is almost always the same:

• Heat increases
• Pressure control becomes unstable
• Clutches begin to slip
• Friction material breaks down

By the time a fault code appears, the process is already underway.

Common Transmission Misdiagnoses

One of the biggest reasons automatic transmission repairs become unnecessarily expensive is simple:

The wrong problem gets diagnosed first.

Modern automatic transmissions are highly integrated systems. Hydraulic pressure, electronics, software, engine torque, cooling and mechanical components all work together. When one part of the system begins to fail, the symptoms often resemble something completely different.

Over the years we’ve seen many vehicles arrive after significant money has already been spent replacing perfectly good parts. In many cases, the original fault was still present because the diagnosis focused on the symptom rather than the underlying cause.

Here are some of the most common examples.

“The Engine Is Misfiring”

Many customers describe transmission shudder as an engine misfire.

This is particularly common between 80 and 110 km/h when the torque converter clutch is applying during steady highway cruising.

A torque converter clutch that repeatedly grabs and releases can feel remarkably similar to a slight engine hesitation. Spark plugs, injectors, ignition coils and even fuel pumps are sometimes replaced before anyone considers the automatic transmission.

If the vibration only occurs during light throttle cruising and disappears under acceleration, the torque converter should always be considered as a possible cause.

“It Just Needs a Transmission Service”

Fresh transmission fluid is important, but it cannot repair worn hydraulic components.

If the valve body is leaking internally, the separator plate has warped, or the torque converter clutch has already started deteriorating, changing the fluid will not restore the damaged components.

In some situations a fluid service may temporarily improve shift quality because the new fluid has different friction characteristics. Unfortunately, this often creates the impression that the problem has been solved, when in reality the underlying wear continues to progress.

“The Solenoid Has Failed”

Many fault codes mention pressure control solenoids.

Naturally, many people assume replacing the solenoid will solve the problem.

However, on many modern transmissions the solenoid is operating exactly as commanded. The real problem is that hydraulic pressure cannot reach the clutch because of internal leakage inside the valve body or excessive wear within the hydraulic circuits.

Replacing a perfectly functional solenoid rarely fixes a hydraulic problem.

“The Whole Transmission Needs Replacing”

This is probably the most expensive misdiagnosis of all.

A transmission showing converter shudder or early valve body wear is often described as “completely worn out.”

In reality, many automatic transmissions can be successfully repaired by replacing only the failed component, provided the fault is identified before widespread clutch damage occurs.

A correctly diagnosed torque converter or valve body repair can often prevent the need for a complete transmission rebuild.

“The Torque Converter Is Fine”

The opposite situation also happens regularly.

Some vehicles receive replacement valve bodies when the real problem is the torque converter clutch itself.

Because the valve body controls converter lock-up, both components can produce similar symptoms.

Without monitoring converter slip under load, it can be difficult to determine which component is actually responsible.

“No Fault Codes Means Nothing Is Wrong”

One of the most dangerous assumptions is believing the absence of fault codes means the transmission is healthy.

Many early transmission problems develop long before the control module stores a diagnostic trouble code.

Minor hydraulic leakage, early converter clutch wear and small pressure losses may all exist while the transmission still operates within the computer’s allowable limits.

By the time a warning light appears, the mechanical wear has often been developing for thousands of kilometres.

“It’s Just Because the Vehicle Is Getting Older”

Age alone rarely causes automatic transmission problems.

What matters far more is operating temperature, towing history, maintenance, driving conditions and how much hydraulic wear has accumulated over time.

We’ve seen heavily worked commercial vehicles with very high kilometre readings that still shift beautifully, while relatively low-kilometre vehicles used for heavy towing have required significant transmission repairs.

Maintenance history and operating conditions tell a much more accurate story than the odometer alone.

Correct Diagnosis Always Starts With Understanding the System

Successful transmission diagnosis isn’t about finding the first fault code or replacing the first component that looks suspicious.

It’s about understanding how hydraulic pressure, torque converter operation, clutch timing, electronics and temperature interact with one another.

Once that relationship is understood, the fault usually becomes much easier to identify.

That’s why experienced transmission specialists focus on reproducing the symptom, analysing the data and confirming the root cause before recommending repairs. The goal isn’t simply to replace parts—it’s to repair the component that actually failed while preventing unnecessary work and unnecessary expense.

Which Vehicles and Transmissions Are Most Commonly Affected?

Not every automatic transmission develops the same faults. While the symptoms may appear similar—shudder, harsh shifting, delayed engagement or limp mode—the underlying causes often depend on the specific transmission fitted to your vehicle.

Knowing which transmission your ute uses helps narrow down the most likely causes and allows more accurate diagnosis.

Below are some of the most common automatic transmissions we diagnose in Australian four-wheel drives and light commercial vehicles.

Toyota LandCruiser 200 Series – AB60F

The Toyota LandCruiser 200 Series has earned an outstanding reputation for reliability and is one of Australia’s most popular touring and towing vehicles. Whether towing large caravans around the country, hauling boats or travelling long distances on corrugated roads, the AB60F six-speed automatic transmission is expected to handle enormous workloads.

Overall, the AB60F is a very durable transmission, but like any automatic gearbox, it has its own failure patterns.

Vehicles that spend significant time towing heavy caravans or operating in high ambient temperatures can eventually develop torque converter clutch wear, elevated transmission temperatures and valve body pressure regulation issues. Owners may first notice a slight shudder during highway cruising, delayed lock-up, harsher gear changes under load or occasional transmission overheating while towing long grades.

Unlike some lighter-duty transmissions, the AB60F often provides considerable warning before major failure occurs. Early symptoms such as intermittent converter shudder or increased transmission temperatures should never be ignored, as addressing these issues early can often prevent widespread clutch damage and considerably reduce repair costs.

With regular servicing, sensible temperature management and early diagnosis of developing faults, the AB60F remains one of the strongest automatic transmissions fitted to a modern Australian four-wheel drive.

Ford Ranger and Ford Everest – 6R80

The Ford 6R80 is one of the most common automatic transmissions seen in Australian workshops. It is fitted to many PX1, PX2 and early PX3 Rangers, along with Everest models.

Although generally regarded as a strong transmission, high towing loads, elevated transmission temperatures and high kilometre use can eventually lead to torque converter clutch wear, valve body hydraulic leakage and pressure regulation problems.

The most common complaints include converter shudder, harsh shifting, intermittent limp mode after towing and fault codes such as P0741, P2757 and P2700.

When diagnosed early, many of these problems can often be repaired without requiring a complete transmission rebuild.

Toyota HiLux, Prado and Fortuner – A750F

Toyota’s A750F has earned an excellent reputation for durability, particularly in touring and commercial applications.

However, even robust transmissions develop wear over time.

The most common issues involve valve body wear, separator plate leakage and pressure control problems that usually appear after prolonged towing, off-road driving or extended operation under heavy loads.

Typical symptoms include harsh cold shifts, delayed gear engagement, inconsistent shift quality and fault codes such as P2714.

Early valve body repairs frequently prevent more extensive internal transmission damage.

Isuzu D-MAX and Mazda BT-50 – AW30-40LE

The Aisin AW30 transmission is widely used in Isuzu D-MAXs and earlier Mazda BT-50s.

These transmissions generally provide excellent service life but are particularly sensitive to hydraulic pressure loss as internal wear develops.

Common symptoms include delayed engagement, pressure apply time faults, converter shudder and harsh shifting under load.

Many owners notice problems first while towing or climbing long hills, where higher transmission temperatures expose developing hydraulic issues.

Mitsubishi Triton and Pajero Sport

Depending on model year, Mitsubishi vehicles are fitted with several different automatic transmissions, each with its own characteristics.

One of the more common complaints involves torque converter shudder during highway cruising, particularly on vehicles regularly used for towing.

Valve body wear and pressure control issues may also develop with increasing mileage, producing harsh shifts or delayed engagement before any fault codes appear.

Because several transmission variants have been used over the years, correct identification of the transmission model is an important part of accurate diagnosis.

Nissan Navara and Pathfinder

Many Nissan models use Jatco automatic transmissions, which rely heavily on accurate hydraulic pressure control and converter lock-up operation.

Early warning signs often include intermittent converter shudder, delayed engagement and fault codes relating to torque converter performance.

Like many modern transmissions, these faults are often progressive and become more expensive if diagnosis is delayed.

Holden Colorado and Isuzu-Based Platforms

Several Holden Colorado models share transmission designs with Isuzu applications.

These units commonly develop pressure regulation issues, valve body wear and torque converter clutch problems after extended towing or commercial use.

Owners frequently report harsh downshifts, delayed engagement and intermittent limp mode before significant internal damage occurs.

Fortunately, many of these faults can be repaired successfully when identified during the early stages of failure.

No Automatic Transmission Is Completely Immune

Although every transmission has its own design characteristics, one fact remains remarkably consistent across almost every manufacturer.

Automatic transmissions rarely fail without warning.

Regardless of whether you drive a Ford Ranger, Toyota HiLux, Isuzu D-MAX, Mitsubishi Triton, Nissan Navara, Holden Colorado or another four-wheel drive, the pattern is usually the same. Hydraulic pressure gradually becomes less stable, heat begins to build, clutch wear accelerates and the transmission control module eventually detects behaviour outside its expected operating range.

Understanding the transmission fitted to your vehicle is the first step towards accurate diagnosis. Understanding how that transmission fails is what allows the correct repair to be made before unnecessary damage occurs.

How Automatic Transmission Diagnostics Actually Work

Many people assume diagnosing an automatic transmission is simply a matter of plugging in a scan tool and reading the fault codes.

If only it were that simple.

In reality, a fault code is rarely the diagnosis. More often, it is simply the transmission’s way of telling you that something isn’t behaving as expected. The code identifies the symptom, but it doesn’t necessarily identify the component that has failed.

For example, a torque converter fault code doesn’t automatically mean the torque converter itself is faulty. The underlying cause could be hydraulic pressure loss, valve body wear, contaminated fluid, internal clutch deterioration or even overheating caused by prolonged towing. Likewise, a pressure control solenoid code doesn’t always indicate a failed solenoid. In many cases, the solenoid is operating exactly as commanded, while worn hydraulic circuits prevent pressure from reaching the clutch packs efficiently.

This is why experienced transmission specialists focus on understanding the complete system rather than replacing parts based solely on fault codes.

A proper diagnostic process begins by listening to the owner.

When do the symptoms occur?

Does the transmission behave differently when cold?

Does the problem only appear after towing?

Does Sport Mode change the behaviour?

Has the transmission recently been serviced?

Answers to these questions often provide valuable clues before the vehicle is even connected to diagnostic equipment.

The next step is a complete electronic scan of the vehicle. Modern automatic transmissions constantly monitor clutch apply times, converter slip, hydraulic pressure commands, transmission temperatures and dozens of other operating parameters. Reading this information provides an important starting point, but it is only one part of the overall diagnosis.

Live data is usually far more valuable than stored fault codes.

Instead of asking, “What code is stored?”, experienced diagnosticians ask questions such as:

• Is the torque converter locking when commanded?
• How much converter slip is occurring under load?
• Are clutch apply times increasing?
• Is line pressure stable?
• Does transmission temperature rise unusually quickly?
• Are shift adaptations compensating for internal wear?

Answering these questions helps identify problems before major failures occur.

Road testing is equally important.

Many automatic transmission faults only appear under specific operating conditions. A vehicle may shift perfectly around town yet develop converter shudder at 95 km/h. Another may operate normally until towing a caravan uphill. Others only display symptoms after the transmission reaches full operating temperature.

This is why simply reading fault codes while the vehicle is stationary often misses the real problem.

Fluid inspection provides another valuable piece of the puzzle.

The colour, smell and condition of the automatic transmission fluid often reveal how the transmission has been operating. Burnt fluid suggests excessive heat. Metallic particles may indicate internal wear. Friction material can point towards clutch or torque converter deterioration. However, clean-looking fluid should never be taken as proof that the transmission is healthy, as many hydraulic problems develop long before obvious contamination appears.

Sometimes additional inspection is required.

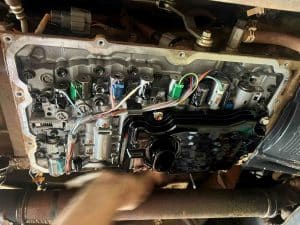

Removing the transmission pan allows technicians to examine the filter and inspect for excessive clutch material or metal debris. On some transmissions, valve bodies can then be tested to identify internal hydraulic leakage or worn pressure circuits that are impossible to detect using electronic diagnostics alone.

Only after all of this information has been gathered should repair recommendations be made.

Sometimes the correct repair is a torque converter.

Sometimes it is the valve body.

Sometimes the transmission simply requires servicing and software updates.

Occasionally a complete rebuild is the only sensible option.

The important point is that the repair should follow the diagnosis—not the other way around.

Automatic transmissions are complex hydraulic systems that rely on precise pressure control, accurate electronic management and efficient cooling. Diagnosing them successfully requires understanding how each of those systems interacts under real driving conditions.

The objective of professional diagnostics is not simply to identify what has failed today. It is to understand why it failed, determine whether any secondary damage has already occurred and recommend the repair that restores long-term reliability rather than simply clearing the fault code.

Transmission Failure Doesn’t Happen Overnight — It Happens in Stages

One of the biggest misconceptions about automatic transmissions is that they fail suddenly. In reality, they almost never do. Most transmission failures develop over weeks, months, or even years before the vehicle finally displays a fault code or loses drive.

Understanding this progression helps explain why early diagnosis is so important.

A healthy automatic transmission maintains stable hydraulic pressure, correct clutch apply timing, and clean transmission fluid. Every gear change occurs within a very small time window, and the torque converter locks and unlocks exactly when the transmission control module commands it.

The first stage of failure usually begins with a small hydraulic problem. This may be slight valve body wear, minor internal leakage, or the early stages of torque converter clutch deterioration. At this point, most drivers notice nothing at all. The transmission still shifts normally, and no diagnostic trouble codes are stored.

As internal wear increases, hydraulic pressure becomes less stable. The transmission starts compensating automatically by increasing line pressure or changing clutch apply timing. Modern transmissions are remarkably intelligent and can often hide developing problems for thousands of kilometres. Unfortunately, although the symptoms may disappear temporarily, the wear continues inside the gearbox.

The next stage is the one where many owners first notice something isn’t quite right. You might experience a slight shudder when cruising at highway speeds, a harder shift on cold mornings, a delay selecting Drive or Reverse, or occasional gear hunting when towing. These symptoms are often intermittent, making them easy to ignore.

Heat is the Enemy

As heat builds inside the transmission, the situation accelerates. Elevated transmission fluid temperatures reduce the effectiveness of clutch friction material, increase internal leakage, and place greater stress on the torque converter, valve body, and clutch packs. Heat is rarely the original fault, but it almost always accelerates every existing problem.

Eventually the transmission control module reaches the limit of how much it can compensate. Clutch apply times become too long, torque converter slip exceeds acceptable limits, or pressure regulation becomes unstable. Only then does the vehicle begin storing fault codes such as P0741, P2714, P2757, P2700 or P2703.

By the time a fault code appears, the mechanical wear has often been developing for a considerable period. The code is not the beginning of the failure—it is usually one of the final warnings before significant damage occurs.

If the problem continues to be ignored, friction material contaminates the transmission fluid, hydraulic circuits become less efficient, clutch packs begin slipping under load, and eventually the vehicle enters limp mode or loses drive completely. At this stage, repairs that may once have involved a torque converter or valve body can become a complete transmission rebuild.

The encouraging news is that many transmissions can be saved long before reaching this point. Early symptoms such as light shudder, delayed engagement, harsh cold shifts, or intermittent fault codes are often opportunities rather than disasters. When the underlying cause is identified early, targeted repairs can frequently prevent major internal damage and significantly reduce repair costs.

This staged progression is exactly why we place so much emphasis on diagnosis rather than simply reading fault codes. A fault code tells you that something has already gone wrong. Understanding where the transmission sits in the failure progression tells you how much of the gearbox can still be saved.

P0741 – The Torque Converter Clutch Code That Kills Your 4WD

If your Ranger, HiLux, Triton, or D-MAX has thrown a P0741 code( click this link to read more about it), you’re dealing with one of the most common — and most damaging — automatic transmission faults affecting Aussie utes. This isn’t just a warning light. P0741 is your ute’s way of saying the torque converter clutch (TCC) isn’t locking up the way it should. And if you keep driving with this fault, you’re not just risking more shudder and poor fuel economy — you’re on track to cook your gearbox.

At Brisbane Tuning & Turbo, we’ve diagnosed hundreds of P0741 faults across the workhorse platforms we see every day. Whether it’s a PX Ranger pulling a trailer, a HiLux that’s been chipped and lifted, or a Triton that’s towed a camper through the Glass House Mountains — the symptoms are always familiar. It starts as light shuddering at cruise, or revs that rise slightly under load in top gear. The ATF gets hotter than normal. Sometimes the code appears, then clears itself. But behind the scenes, damage is building.

P0741 what does the code actually mean?

P0741 refers to “Torque Converter Clutch Performance.”

When the TCM (Transmission Control Module) commands the converter to lock, it expects to see slip drop to nearly zero. If it doesn’t, it logs the code. This is usually interpreted as a solenoid fault — and plenty of local general mechanics stop there. But in 80% of cases, the real issue is mechanical. The clutch inside the converter is worn, glazed, or delaminating. It can’t grab properly, and the TCM sees it slipping. That’s what triggers the code. If you only replace the solenoid or flush the fluid, the problem stays — and eventually takes out the rest of the transmission.

In a recent PX2 Ranger case, the customer had been told by another mechanical workshop that the code was “no big deal.” He was chasing poor fuel economy and occasional shudder under load. We performed a Redorq diagnostic: scan log, dyno load test, and fluid analysis. On dyno, the TCC was commanded on at 85 km/h — but slip only dropped to 220 rpm, far from the near-zero target. Fluid smelled burnt and had metallic streaks. That converter had been dragging under load for months. The friction lining was glazed and breaking down.

A converter replacement solves the issue and prevents gearbox damage

If caught early, a converter replacement solves the issue and prevents gearbox damage. At Brisbane Tuning & Turbo, we replace the failed unit with a Redorq TQ+ converter — built with upgraded clutch materials designed to handle towing and long-distance use. We pair that with a fluid flush and often recommend a transmission cooler upgrade. If the dyno log shows erratic pressure or shift timing, we add a valve body to the quote. On some platforms like the A750F HiLux or AW30 D-MAX, the converter fault can cause pressure spikes that damage separator plates and solenoid bores. That’s why we always quote based on the dyno evidence, not guesswork.

Pricewise, most P0741 jobs fall between $2,850 and $3,900, depending on the platform and what else has been affected. The diagnosis itself costs $285 and includes scan, dyno test, fluid check, and written report. If you proceed with the converter job, that diagnostic fee can be credited back. If you’re chasing performance or fuel economy, we can also remap the torque converter lock-up strategy to reduce wear and improve driveability — especially helpful for chipped utes or those carrying extra weight.

What happen if you Ignore P0741?

Ignoring P0741 is a huge mistake and can be a very expensive path to choose. It’s one of the few codes that shows up before a major transmission failure. If you leave it long enough, the converter will drag more, heat will build up, and the clutch packs will start slipping. Eventually, you’ll get limp mode, shift flares, or worse — a completely burned gearbox. That’s why we push so hard for early diagnosis. If the converter’s on the way out, replace it before it takes the rest of the driveline with it.

Whether you’re towing a trailer, climbing fire roads, or just daily driving a tuned ute, the torque converter is one of the hardest-working parts in your vehicle. And when P0741 appears, it’s telling you that the heart of your automatic transmission is already in trouble.

Book your Redorq Diagnostic today. One scan won’t fix it — but the right diagnosis will.

P2714 – The Toyota HiLux Shift Fault That Comes After Towing

If you drive a HiLux, Prado, or Fortuner and you’ve just come back from towing a trailer, you might notice the automatic transmission starts shifting hard into third or fourth. Sometimes it’s just a jolt when cold. Other times the vehicle suddenly loses power, throws a warning light, and locks into limp mode. The most common code we see in these cases is P2714 — “Pressure Control Solenoid D Stuck Off.” But the name of the code is misleading. What’s failing isn’t the solenoid. It’s the valve body.

This fault is notorious across the A750F transmission platform, which Toyota used in HiLuxes, Prados, Fortuners, and even some Tritons badged with Aisin gearboxes. In theory, P2714 refers to a single solenoid. In reality, it’s almost always the symptom of deeper hydraulic issues inside the valve body. These failures often appear after towing trips, long uphill drives, or heat-soaked operation on modified utes. The problem creeps in silently — and if you don’t diagnose it properly, the whole box can be compromised.

The A750F

The A750F is a strong unit, but its valve body suffers from two specific weaknesses. First, the separator plate is thin, stamped steel that warps under repeated heat cycles. Once it flexes, fluid begins to leak between circuits that were never meant to connect. Second, the PWM solenoids rely on precise pressure control. If the bores that hold them wear out, the pressure modulates unevenly, and the TCM can no longer command smooth shifts. This is how you end up with harsh upshifts, especially when cold. On scan, you’ll see P2714 set after the ECU tries to modulate the clutch, fails to see pressure change, and logs the event.

P2714

We recently had a 1GD-FTV HiLux in the shop that had just towed a 2.5-tonne caravan. No prior symptoms, then suddenly harsh third gear shifts and “check engine” light. The owner had been told by a general mechanic to try flushing the transmission. Luckily, he called us first. On scan, the code was confirmed as P2714. Later on the dyno, we saw delayed clutch engagement under part-throttle and pressure spikes when warm. Vacuum testing of the valve body showed internal leakage at the SLT and C2 clutch circuits. Fluid was starting to discolour and showed metallic flecks — a classic early sign of separator plate fatigue.

The repair in this case was a Redorq Valve Body upgrade — a remanufactured unit with tested solenoid bores, upgraded separator plate, and all new gaskets. We flushed the fluid, fitted a high-capacity trans cooler, and retuned the lock-up strategy to reduce thermal load during towing. Total turnaround was four days and the ute is now shifting like new — smoother than it had in years. If this job had been delayed, the excessive shift pressure would have cooked the clutches and forced a full rebuild.

P2714 isn’t “just a solenoid code”

This is why we never treat P2714 as “just a solenoid code.” It’s always an invitation to dig deeper. Our diagnostic process for Toyota A750F faults starts with a full scan, then dyno load testing to monitor shift behaviour. We log pressure rise, clutch apply delay, and any signs of overcompensation. Then we drop the pan and inspect the fluid and debris. If needed, we vacuum test the valve body off-vehicle to identify which circuits are leaking. Only after that do we quote repair — no guessing.

If you’ve recently noticed harder shifts in your HiLux or Prado, especially after towing or heavy load use, get ahead of it. Catching valve body failure early prevents gearbox damage and saves thousands. A typical Redorq Valve Body repair on a HiLux runs between $2,600 and $3,800, depending on whether the fluid is salvageable, the pan is clean, and the converter hasn’t been heat-damaged. All of our diagnostics begin with a $285 scan and dyno session, which in some sases can be even credited if you proceed with repair.

P2714 isn’t simple

P2714 might seem like a simple fault, but it’s the start of a bigger failure curve. Don’t clear the code and cross your fingers. If your HiLux is slamming into gear or hesitating during shift, let’s test it properly — before the whole transmission becomes collateral damage.

Book a Redorq Diagnosis today. It’s the only way to know if your valve body can be saved — or if it’s already taking your gearbox down with it.

P2757 – The Ford Ranger Code That Locks Up More Than Your Converter

P2757 is the kind of code that doesn’t just cause drivability issues — it burns through torque converters, pushes gearboxes into limp mode, and leaves Ranger owners wondering whether their whole transmission is toast. This code is common on Ford PX and PX2 Rangers fitted with the 6R80 transmission, and it’s one we see constantly at Brisbane Tuning & Turbo. It usually shows up after towing, steep terrain, or long drives in hot conditions. What it means, and how it’s fixed, is often misunderstood — and if you go off the wrong workshop’s advice, you could end up replacing the wrong parts.

P2757 burns torque converters

The formal description for P2757 is “Torque Converter Clutch Pressure Control Solenoid Stuck On.” That sounds like a solenoid has failed electrically. But in real-world diagnostics, the solenoid is rarely the issue. The true root cause is often either a worn-out converter clutch dragging when it shouldn’t, or a valve body circuit failing to relieve pressure — causing the converter to stay locked at the wrong time. The result is rough shifting, jerking at low speeds, flare when coasting to a stop, or full-on limp mode when hot.

We recently had a PX Ranger in that had just towed a 2.5-tonne caravan from Brisbane to Townsville. The driver reported that on the return trip, the ute started jerking at traffic lights, especially when coming to a stop. A few days later, it lost gears and dropped into limp mode with a P2757 code stored. Other workshops had told him it was a solenoid and quoted a valve body. But when we put it on the dyno, the data told a different story.

On live scan, we saw the TCC commanded off at idle, but converter slip remained at near zero — meaning the clutch was still locked. That kind of behaviour means one thing: the clutch inside the converter is stuck dragging. Fluid confirmed it. It had a dark varnish colour, a burnt smell, and light metallic content. We’d caught it just in time. The converter clutch was heat-affected but the gearbox itself hadn’t started to fail. That’s where proper diagnosis matters.

P2757 isn’t an electrical problem

The mistake many general mechanics make with P2757 is assuming it’s an electrical problem. They’ll swap solenoids or install a used valve body without understanding the pressure flow and converter status. The solenoid may be getting signal and working fine, but if the clutch is jamming due to friction breakdown or pressure is bleeding through a damaged circuit, the TCM won’t see the slip it expects. That’s how the fault is triggered. In other words, it’s not a stuck solenoid — it’s a converter that won’t let go.

Our Redorq diagnostic process starts with a full scan and dyno load test. We monitor TCC slip, solenoid current, and pressure command across real driving conditions. We also inspect fluid for signs of converter damage — black streaks, glitter, or varnish. If the converter is staying locked when commanded off, it’s replaced with a heavy-duty Redorq TQ+ unit. These converters are built to handle towing loads, remapped torque strategies, and the kind of heat Queensland summers throw at the 6R80.

Recommend a transmission cooler

In jobs like this, we often recommend a transmission cooler as well. If dyno logs show unusual pressure behaviour or unstable shift sequencing, we quote a valve body too — but only after confirming the fault isn’t isolated to the converter. The idea is to repair what’s actually failing, not shotgun the whole trans with parts.

Typical repair pricing for P2757 starts around $2,850 for a converter-only job with flush and cooler, and can go up to $4,900 if a valve body is needed. The initial $285 diagnostic can be credited toward any repair work that follows. And if the customer wants to protect their driveline long-term, we offer ECU tuning adjustments to reduce converter lock-up frequency and extend clutch life.

Leaving P2757 unresolved is risky. If the converter continues dragging under load or during downshifts, the gearbox will overheat. Friction elements will wear, line pressure will spike, and eventually the shift solenoids won’t respond as intended. At that point, the repair bill goes from thousands to a full rebuild or replacement — all because the clutch failed silently at first.

If your Ranger is jerking, struggling in traffic, or showing converter codes after towing, book a proper diagnosis. This isn’t just about clearing a code. It’s about saving your converter, protecting your transmission, and getting your ute back under control.

P0700 – The Most Misleading Transmission Code of All

If your scan tool throws up a P0700 code and nothing else, you might assume it’s just a glitch or a minor fault. That’s exactly what too many ute owners — and even some workshops — believe. But what P0700 actually means is that your transmission is raising a red flag. It’s telling the vehicle that something inside the gearbox is wrong, and the only reason you’re not seeing more detail is because your diagnostic tool isn’t looking deep enough.

P0700 is not a fault in itself. It’s a general indicator from the transmission control module — the TCM — that one or more internal fault codes exist. It simply acts as a messenger, triggering the check engine light and handing responsibility over to the gearbox’s internal fault memory. It’s like a smoke alarm going off in a closed room. If you don’t open the door, you’ll never see whether it’s a candle or the couch on fire.

P0700 asks you to act NOW

In workshops that don’t specialise in transmission diagnostics, this code often gets cleared without investigation. You’ll hear customers say their mechanic scanned the car, saw P0700, cleared it, and said “bring it back if it comes back.” But the truth is, the damage might already be happening. And unless the internal TCM faults are retrieved using the right scan tools, the vehicle will keep driving — until it doesn’t.

At Brisbane Tuning & Turbo, we see this code across all major work ute platforms. Ford Rangers, Toyota HiLuxes, Isuzu D-MAXs, Mitsubishi Tritons, Holden Colorados — all of them can throw P0700. But they rarely throw it alone. The fault that triggered P0700 is usually one of the following: converter clutch slip (P0741), clutch apply time error (P2700 or P2703), solenoid stuck off (P2714), or converter stuck on (P2757). Each of these faults is serious on its own. But if you only read the outer layer — P0700 — you’ll never know which one is slowly wearing your transmission out.

P0700 — you’ll never know which one is slowly wearing your transmission out.

In one case, we had a 2015 Triton come into the shop that was intermittently entering limp mode. No shift into overdrive, reduced throttle, no warning lights after key cycle. The customer had already been to two mechanical shops. Both found P0700, cleared it, and said it was probably a software bug.

When we scanned it with our diagnostic system, we found a stored P2703 — Friction Element Apply Time Fault. That code told us the clutch pack inside the transmission was applying too slowly under load. On the dyno, we saw delayed engagement into third gear, with flaring during kickdown. The pan was clean, but the fluid was dark and showed signs of thermal degradation. If this had gone another few months, the clutches would have been toast. The customer got out for under $4,000 — a valve body reman, flush, and retune. If he had waited for the next code, it would have been a full rebuild.

In another case, a D-MAX with a six-speed AW30 transmission showed no drivability faults other than a slight delay when shifting into reverse. The scan showed P0700, nothing else. On load, the converter felt tight at idle — not slipping freely as it should. We performed a dyno run and logged TCC slip at under 10 rpm when unlocked. That pointed to a dragging converter clutch — confirmed by a second pass and fluid that smelled faintly burnt. We replaced the converter with a Redorq TQ+ upgrade, flushed the system, and installed a cooler. No more codes, no more converter drag.

These are just two examples. We could list dozens more. The point is this: if you stop at P0700, you’re only looking at the tip of the iceberg.

How do we deal with P0700?

Our standard process for a vehicle with P0700 starts with a full scan using advanced tools like Autel, HP Tuners, Forscan (for Ford platforms), and VCDS (for VW/Audi when relevant). These tools access the TCM memory directly — not just the engine control unit. Once we pull the actual fault, we can begin to trace the real problem. Next, we move to the dyno. This lets us observe converter lock-up behaviour, clutch apply timing, line pressure regulation, and shift sequencing under load. We don’t just clear the code. We replicate the fault. Then we diagnose it.

The next step is quoting. Unlike general mechanical workshops, we don’t quote generic “rebuilds” unless necessary. If it’s a converter fault, we quote a Redorq TQ+ upgrade. Yet, if it’s a valve body issue, we offer a reman unit with known good circuits, tested solenoids, and upgraded separator plates. Something worth mentioning, if the pan is clean and fluid salvageable, we pass that saving on. If the converter is dragging but the VB is fine, we don’t upsell what’s not needed. That’s the Redorq philosophy — quote based on actual diagnostics, not assumptions.

P0700

P0700 is especially dangerous on vehicles with modified torque delivery. Towed setups, chip-tuned diesels, and auto utes that see steep inclines are already putting extra pressure on their clutch packs and converter linings. When P0700 appears in these contexts, there’s a high chance that converter slip or clutch lag is already present. If left unchecked, these small control issues lead to burnt friction, clutch damage, solenoid overheating, and full unit failure.

So, what should customers do when P0700 shows up?

First, don’t clear it and forget it. It came on for a reason. Even if your scan tool doesn’t show anything else, that doesn’t mean the fault isn’t real. Second, get it scanned properly — not just with a generic code reader. You need a workshop that understands how to access TCM memory and interpret the data in context. And third, demand a test drive or dyno session under real load. Faults that only appear under thermal or torque stress won’t show themselves at idle in a car park.

Redorq Scan + Dyno Diagnostic

At Brisbane Tuning & Turbo, we offer a Redorq Scan + Dyno Diagnostic for $285. That includes a full scan, dyno load run, fluid inspection, and a written quote based on what’s actually failing. If you go ahead with the converter or valve body repair, that fee can be credited back in some cases. You’re not paying for guesswork — you’re investing in knowing exactly what’s wrong.

P0700 is the most misunderstood code in automatic transmission diagnostics. It’s a curtain hiding a deeper issue — sometimes minor, sometimes catastrophic. But only a proper diagnostic process will tell the difference. If you want to fix the fault instead of chasing it, start with the scan that sees behind the code.

Book your Redorq diagnostic today. Don’t settle for a cleared code when what you really need is the truth about your gearbox.

P0744 – The Intermittent Converter Clutch Code That Destroys Transmissions Quietly

P0744 is one of the sneakiest transmission fault codes out there. Unlike hard codes that slam your ute into limp mode immediately, this one creeps in quietly. Your car still drives. Sometimes it feels totally fine. Other times, you notice a little shudder at cruise, a delayed gear change, or that the revs don’t drop the way they used to on the highway. Then one day, your torque converter slips under load — and it’s too late.

P0744 means intermittent torque converter clutch control. It’s logged when the transmission control module (TCM) commands the converter clutch to engage or disengage, but doesn’t see the expected change in slip or RPM. In short, the TCM is expecting lock-up or release to happen smoothly, but it doesn’t. This can be due to electrical issues, fluid problems, or — most commonly — mechanical clutch failure inside the torque converter itself.

P0744 means the converter clutch is scorched

We see this code a lot in vehicles that have just come back from towing. Navaras, Pathfinders, Tritons, HiAces, and even D-MAXs and HiLuxes can all throw P0744, particularly after high-load or high-heat conditions. But unlike codes like P0741 (full lock-up failure) or P2757 (clutch stuck on), this one appears inconsistently. That’s what makes it dangerous. Owners often delay dealing with it because the ute is still moving. By the time symptoms are strong enough to be obvious, the converter clutch is usually scorched or delaminating, and in worst cases, the gearbox has started to overheat and degrade too.

The most common complaint we get with P0744 is intermittent shuddering around 80–110 km/h. This happens during light throttle cruise, when the torque converter clutch is supposed to engage smoothly and hold the engine in direct drive. If the clutch is slipping slightly — either from glazing, heat wear, or internal leakage — you’ll feel a vibration. Some customers describe it as “driving over a rumble strip.” Others say it’s like the engine is misfiring. It’s not the engine. It’s the converter losing grip.

RPM instability at steady speeds

Another sign is RPM instability at steady speeds. You’re sitting at 100 km/h, cruise control on, but the revs keep fluttering up and down by 100–200 rpm. This means the lock-up clutch isn’t holding. It’s flaring slightly, re-engaging, then slipping again. The TCM will pick this up and eventually store P0744. Sometimes it takes weeks to trigger the code. By then, fluid degradation is already underway.

We recently had a 2016 Triton come in with exactly this complaint. The customer towed a 1.8-tonne camper from Brisbane to the Glass House Mountains and back. No warning lights, but noticed the ute “felt rough” when cruising. On scan, we found a stored P0744 and no other codes. The fluid was slightly dark but not burnt. On the dyno, we saw converter clutch slip of 150 rpm at steady-state lock-up, confirmed over multiple load points. This clutch should have been locked within 10 rpm — the extra slip meant the clutch was slipping internally, not enough to trigger limp mode, but enough to wear quickly.

What causes the P0744 behaviour?

There are three major culprits:

3. Valve body control circuit problems. In some platforms (like the RE5R05A in Navaras or A750F in HiLuxes), the solenoid bores wear or the separator plate warps, causing erratic pressure control. This means the converter gets pressure at the wrong time — or not enough to stay engaged.

This is where a proper diagnostic approach is critical. Many workshops will jump straight to replacing the valve body. Others will flush the transmission and hope for the best. Both of these paths waste money if the real fault is mechanical inside the converter.

P0744 needs Redorq Scan + Dyno Diagnostic

At Brisbane Tuning & Turbo, we approach P0744 with a full Redorq Scan + Dyno Diagnostic. First, we confirm the fault is stored in the TCM — not just ghosted in the ECU. Then we load test the vehicle on the dyno and monitor torque converter slip during commanded lock-up. We compare live RPM delta, load data, and gear ratios to assess whether the clutch is engaging, releasing, and holding pressure properly.

Next, we inspect the fluid. Burnt fluid with metallic flecks usually means the clutch is damaged. Varnished or overly dark fluid suggests it’s been overheating. Clear fluid with slipping behaviour often points to mechanical damage that’s already underway.

Only after those steps do we quote the repair. In most cases, the correct fix is a Redorq TQ+ converter upgrade. These converters are built with upgraded clutch materials, reinforced seals, and tighter lock-up control to handle Aussie towing conditions. If the valve body is also showing pressure control issues, we include a remanufactured Redorq unit with updated separator plates and vacuum-tested solenoids. Many customers choose to install a transmission cooler and ECU tune at the same time, to reduce future thermal stress and improve shift feel.

Redorq TQ+ repair for a P0744

A typical Redorq TQ+ repair for a P0744 fault ranges from $3,000 to $4,200, depending on vehicle platform and whether a valve body is also required. All jobs begin with the $285 diagnostic session —which can be credited to the repair in some cases if you proceed.

The most important takeaway from this code is timing. The earlier it’s caught, the cheaper and cleaner the repair. If you wait until the converter fails completely, it often takes the fluid, clutch packs, and solenoids down with it. That’s when a $3,000 plus converter job turns into a $8,000 plus transmission rebuild.

P0744 is not a glitch. It’s a warning that your torque converter clutch is already struggling — and if left untreated, it will break down under you. Don’t guess. Don’t wait for limp mode. If your ute is shuddering, fluctuating revs at cruise, or logging this code even once, get it tested properly. We’ll tell you exactly what’s wrong and how to fix it the right way.

Book your Redorq diagnostic today — before your converter finishes what it started.

 P2700 / P2703 Pressure Delay Codes and Valve Body Failure

If you’ve ever felt your ute slam into gear on a hill, flare when downshifting, or lag for a second before engaging a gear under load, you might be dealing with one of the most underdiagnosed — but critical — pressure faults in modern autos: P2700 or P2703.

These two codes are officially labelled as “Friction Element Apply Time Faults.” In plain English, that means your transmission is taking too long to build enough pressure to apply a clutch inside the box. Every automatic gearbox uses a series of internal clutch packs that are engaged and released by solenoids and valve body hydraulics. If it takes longer than expected to apply a particular clutch, the transmission control module (TCM) throws one of these codes.

P2700 / P2703 soft codes

The kicker? These codes are rarely hard faults. You won’t always get a check engine light or limp mode. They often appear as pending or stored codes, which many scan tools don’t even show unless you know where to look. But the drivability issues can be severe: late shifts, thuds when slowing down, gear hunting on hills, and flaring between gears during moderate throttle.

At Brisbane Tuning & Turbo, we see P2700 / P2703 – Pressure Delay Codes and Valve Body Failure codes most often in Isuzu D-MAXs, Mazda BT-50s, Ford Rangers (particularly PX1 and PX2), and Tritons running the AW30-40LE or Aisin/Ford 6-speed automatics. In most of these cases, the customer has already had a fluid change — sometimes more than one — and the problem keeps coming back. Why? Because the fluid isn’t the problem. The valve body is.

Here’s how it works.

When the TCM commands a clutch to apply — say, for a shift from 3rd to 4th — it expects that action to complete within a specific time window, often around 0.3 to 0.6 seconds. That applied time is calculated from pressure rise, turbine speed, output shaft speed, and gear position data. If the clutch doesn’t fully apply in time, the TCM logs a fault. P2700 is usually linked to gear apply time in lower gears, while P2703 tends to involve higher gears or shift under load.

The root cause in most of these cases is valve body pressure bleed. Inside the valve body, fluid is directed to apply or release clutches. Over time, the bores that guide these valves wear out. When that happens, pressure leaks internally before it ever reaches the clutch. Think of it like trying to pump up a tyre with a hole in the hose — you can build pressure, but it takes longer, and the tyre may never fully inflate. In transmissions, this leads to soft shifts, flares, or sudden thumps when the pressure finally catches up.

Aisin & GM

The separator plate can also be a culprit. Many Aisin and GM-style valve bodies use stamped steel separator plates with gaskets between channels. With heat cycles and age, these gaskets leak, and sometimes the plates warp slightly. The result? Fluid crosses into the wrong circuit, or fails to build pressure fast enough. Add in worn solenoids or dirty screens and it’s a recipe for inconsistent shift timing.

We had a customer bring in a 2017 BT-50 with both P2703 and P0741 codes stored. The ute had just had a fluid service at another mechanical shop, and the technician said the converter might be bad, but the symptoms were harsh 2–3 shift and delayed gear engagement when towing uphill. On the dyno, we observed a long “apply time” between 2nd and 3rd at 40–50 km/h under load. The converter wasn’t slipping — the valve body wasn’t sending enough pressure to the apply clutch in time. We pulled the pan and found minimal clutch debris, but the separator plate gasket was clearly degraded. The fix? A Redorq Reman Valve Body, paired with a trans cooler upgrade. No more codes, no more flare.

These are exactly the cases where a full transmission rebuild is not yet needed — but will be if left untreated. If the clutch pack isn’t receiving enough pressure, it wears prematurely. That leads to glazed friction, burnt fluid, and in time, full clutch failure. But if the valve body is replaced early, the internal hardware can often be saved.

Pressure delay is a valve body issue

So, how do you know if your ute’s pressure delay is a valve body issue or something deeper?

First step: Redorq Scan + Dyno Test. This gives us access to live apply time values during real-world shifting. If the delay is repeatable and matches known platform behaviour, we go after the valve body. If it varies wildly or shows signs of base pressure loss, we inspect the front pump and pressure regulator valve.

Second: Fluid Inspection and Pan Pull. Metallic contamination points to friction failure. Burnt or varnished fluid tells us the converter may be overheating. Clean fluid but shifting delay? That’s valve body until proven otherwise.

Third: Quote What’s Actually Needed. If the converter clutch is holding and slip is in spec, we don’t touch it. If apply time faults are consistent but pan contents are clean, we quote a reman valve body — not a full box. Redorq Valve Bodies are vacuum tested, rebuilt with upgraded separator plates and gaskets, and come with updated shift calibration where needed. All units are backed with Redorq TQ+ and VB bundles if combined with converter upgrades later.

The average cost of a valve body-only fix for P2700/P2703 ranges from $2,400 to $3,800 installed. If the converter is also affected, we’ll quote a bundle with labour savings. Either way, the repair is cheaper, faster, and more reliable than slapping in a second-hand gearbox with the same worn bores.

If your ute flares, hesitates, or downshifts hard, even with fresh fluid — don’t guess. Don’t wait. These pressure faults only get worse. Book a Redorq diagnostic, and we’ll tell you exactly what’s slipping, how to fix it, and whether your converter or valve body is actually to blame.

Converter Shudder Without a Code – Why It’s Still Failing

Your ute is shuddering — but no lights are on. No fault codes. No limp mode. Just a weird vibration when you’re cruising in top gear, especially on slight inclines or light throttle. You’ve already serviced the transmission. Maybe even changed the fluid twice. The dealer told you it’s normal. It’s not. You’re feeling torque converter shudder — and if it’s not addressed, it will kill your transmission from the inside out.

This is one of the most common — and misunderstood — complaints we see at Brisbane Tuning & Turbo. Ute owners come in reporting a “rumble strip” sensation between 80 and 110 km/h. The vehicle feels fine under heavy throttle or deceleration, but during light cruise, the vibration kicks in. There are no fault codes, so many workshops ignore it or blame wheel balance, driveshafts, or engine mounts. The real problem? Your torque converter clutch is slipping. Not enough to trigger a code — but enough to glaze the clutch, contaminate the fluid, and start a chain reaction of failure.

Let’s get “transmission” technical

Let’s get technical. Automatic transmissions use a torque converter to multiply torque and manage low-speed drivability. But once you reach cruising speeds, the converter locks up via an internal clutch to eliminate slippage and improve fuel economy. That lock-up clutch is hydraulically applied and modulated by the TCM. In modern utes, the clutch engages more aggressively than it used to — often in 3rd, 4th, or 5th gear, even under partial throttle. It’s this aggressive lock-up strategy that leads to early failure when heat, towing, or tuning push the converter beyond its design limits.

Converter shudder happens when the clutch is partially engaged — not fully slipping, but not fully locked. The friction material grabs and releases rapidly, causing a fine vibration that resonates through the drivetrain. Think of it like riding the clutch on a manual gearbox. The friction surface overheats, starts to glaze, and eventually loses its ability to grip at all.

TCM is blind…often

Now here’s the catch: the TCM doesn’t always see this as a fault. It’s not a solenoid failure. It’s not a circuit break. The slip ratio may still be within the allowable range — just barely. So no code is logged. But the damage is already happening. Every time that clutch chatters against the converter housing, it sheds material into the fluid. That fluid then circulates through the valve body, where it can clog solenoid screens, wear valve bores, and create erratic shift timing. What started as a minor vibration becomes a full drivability issue.

At Brisbane Tuning & Turbo, we’ve documented this progression repeatedly. A 2018 D-MAX came in last month with a complaint of mild vibration at 95 km/h on the highway. No codes. Transmission had just been serviced by a local shop. The fluid looked clean. On the dyno, we saw converter slip holding steady under 5% during lock-up — but the vibration was real, and matched known TCC modulation points. We recommended a Redorq TQ+ converter upgrade. When we saw cut the old converter open, the clutch surface was glazed and uneven, with visible hot spotting. It had been slipping for months — just not enough to trip the TCM.

ECU tunes

We’ve also seen this happen after creatively aggressive ECU tunes. When torque curves are changed without adjusting converter lock-up points, the clutch engages under heavier load than it was designed for. This is especially common on tuned Tritons, Navaras, and PX1 Rangers. The added torque isn’t the issue — it’s the timing of the lock-up and how quickly the clutch ramps in. A converter not designed for aggressively tuned powerbands will chatter even with healthy fluid.

Heat

Heat is another killer. Towing without a trans cooler can raise ATF temps above 120°C, causing the clutch material to break down. Some owners run thicker aftermarket fluids hoping to “solve” the vibration. It doesn’t work. The clutch needs pressure, cooling, and the right engagement profile — not just fresh oil.

Diagnosing converter shudder without a code requires experience and proper tools. At BTT, our Redorq Scan + Dyno Diagnostic includes live torque converter slip monitoring, cruise-speed load simulation, and fine-resolution RPM matching. We recreate the exact conditions where shudder occurs, then confirm lock-up slip via dyno trace. If the converter is holding lock-up with zero slip, it’s likely not the source. If it’s fluttering — even without a code — we’ve found the fault.

We also inspect fluid condition. Even slightly darkened or varnished fluid in a converter-shudder case tells us the clutch is breaking down. Clean fluid rules out other internal failures, giving us confidence that the converter is the primary issue.

Redorq TQ+ converters

Once confirmed, the fix is simple — but specific. Redorq TQ+ converters are built with upgraded friction materials, reinforced clutch surfaces, and better seal design to handle Australian towing conditions. They lock up smoother, hold torque more consistently, and don’t fall apart under ECU tuning. In most cases, we also recommend a trans cooler and a mild ECU remap to soften early lock-up aggression — particularly on tuned or heavily loaded utes.

This repair isn’t just about comfort. It’s about protecting your entire transmission. A slipping converter leads to heat. Heat leads to friction breakdown. That leads to pressure loss, solenoid contamination, and premature clutch wear. What started as a $3,000 converter job becomes a $7,500 transmission rebuild if left too long. And second-hand replacement boxes often come with the same worn converters still inside — meaning the problem returns within months.

If your ute is vibrating at cruise and nobody can find the fault, it’s probably not the wheels. Surely, it’s not the engine. By the way, it’s not the mounts. It’s your converter slipping without telling the computer. Book a Redorq diagnostic before it turns into a full teardown.

Your ute doesn’t need a new automatic transmission. It needs someone who knows what to look for.

Harsh Shifting Cold – The Hidden Leak in Your Valve Body

Harsh Shifting Cold – The Hidden Leak in Your Valve Body. If your ute slams into 2nd or 3rd gear first thing in the morning, then shifts fine for the rest of the day, it’s not just “a cold box.” That jolt you feel isn’t normal. It’s a hydraulic leak inside your valve body — and it’s only going to get worse.

At Brisbane Tuning & Turbo, this is one of the most common complaints we hear from HiLux, D-MAX, and BT-50 owners, especially those running the A750F or AW30-40LE automatics. They’ll say the gearbox shifts hard into 2nd or 3rd when cold, but once it warms up after 10 or 15 minutes, the harshness disappears. Most workshops chalk it up to “old fluid” or normal behaviour. It’s not. It’s valve body wear — and if caught early, it’s fixable without a full transmission rebuild.

Let’s walk through why it happens.

Automatic transmissions rely on oil pressure to apply internal clutches and shift gears. The valve body is the hydraulic brain that routes this pressure based on inputs from the TCM. Inside the valve body, tiny valves move in precisely machined bores. As these bores wear from years of fluid cycling, towing heat, and solenoid pressure changes, they begin to leak. That leakage means pressure intended for one clutch circuit bleeds into another or escapes entirely.

When cold, the viscosity of the fluid is higher. The system takes longer to build adequate pressure. Combine this with internal leakage in worn valve body bores or separator plates, and the clutch engages late or with excess pressure buildup — which creates a “slam” effect. Once the fluid warms up, its viscosity drops, and the internal seals expand slightly, masking the symptoms temporarily. But the damage is already progressing.

We had a customer bring in a 2015 HiLux 1KD-FTV with exactly this issue. The A750F would bang into 2nd gear when cold. No codes were stored. Fluid was relatively clean, having been changed just 20,000 km ago. Another shop had told the owner it was a mount or maybe bad fuel causing RPM fluctuation. On the dyno, we replicated the cold condition and measured clutch apply timing. Sure enough, the shift into 2nd had a delayed pressure build-up followed by a rapid overshoot. That’s textbook valve body leakdown — pressure builds slowly behind a leaky valve, then dumps suddenly when it finally reaches threshold. We replaced the valve body with a Redorq remanufactured unit, featuring tighter bore tolerances and an upgraded separator plate. Cold shifts became smooth immediately. No harsh engagement. No driveline shock.

D-MAX and BT-50 platforms running the AW30

This same pattern shows up in D-MAX and BT-50 platforms running the AW30. These boxes often have steel separator plates with bonded gaskets. Over time, thermal cycling causes those gaskets to leak between circuits. When pressure bleeds during cold startup, it causes erratic or aggressive clutch engagement, typically between 2nd and 3rd or 3rd and 4th. The issue is magnified in utes that tow regularly or have seen hot ATF temperatures in the past.

What makes this fault dangerous

Here’s what makes this fault dangerous: many owners ignore it because it “goes away.” They continue driving for months or years, assuming it’s a normal cold behaviour. But every hard cold shift sends shock through the driveline — driveshafts, diffs, CVs, and mounts all take the hit. Internally, the clutch packs start to wear prematurely, as do solenoid lands and valve bore sleeves. By the time you can feel the problem even when warm, the damage is done — and the fix has jumped from a $3,000 valve body to a $7,000 rebuild.

PX Ranger with a 6R80 automatic

Another case involved a PX Ranger with a 6R80 automatic. This box is generally reliable, but cold shift shock is still a sign something’s wrong. The customer described a “massive slam” into 2nd gear on winter mornings. On the dyno, we observed torque reversal and spike during the 1–2 shift at low temps — the pressure trace showed a delayed clutch fill followed by overshoot. Again, this was confirmed to be a valve body issue. The Redorq replacement solved the issue, and further fluid analysis confirmed that while the converter was still in good shape, the valve body was bleeding pressure internally.

Diagnosing cold shift problems properly requires more than a scan tool. Most of these faults never trigger a code. That’s why BTT runs every suspected case through our Redorq Scan + Dyno Diagnostic. We recreate the exact conditions where the fault appears, then log real-time clutch apply rates, shift timing, pressure values, and torque modulation. If we catch pressure lag or overshoot in cold shifts, we know we’re dealing with internal hydraulic leakdown.

From there, the repair is straightforward — remove and replace the valve body with a remanufactured Redorq unit. These aren’t just cleaned and reinstalled like some second-hand parts. Every unit is vacuum-tested for leakage, fitted with an upgraded separator plate, and assembled with tighter-than-factory bore tolerances. Most include updated shift logic calibration to suit modern load and towing demands. In HiLuxes and D-MAXs that tow frequently, we also recommend pairing the job with a trans cooler to reduce future thermal cycling stress.

Would flushing the fluid solve this problem?

Customers often ask if flushing the fluid can solve this problem. The answer is no. Fluid flushes can help remove debris or contaminants, but they don’t fix mechanical wear inside the valve body. In fact, aggressive flushes on a leaking unit can sometimes accelerate failure by disturbing weakened seals. If cold shift symptoms persist after a fluid service, don’t flush again — get a proper pressure test.

The typical repair cost for valve body replacement due to cold shift harshness ranges from $2,600 to $3,900 installed, depending on platform. We quote based on confirmed diagnostics — not guesswork. That’s why every Redorq VB quote includes a scan + dyno credit and fluid lab report if needed.

In short, if your ute is banging into gear when cold, don’t let it ride. Cold slam shifts are a mechanical red flag, not a personality trait. Left unchecked, they can destroy more than just your transmission — they can hammer your driveline, wear your converter, and cost you thousands more down the track.

If your automatic transmission misbehaves cold but smooths out warm, book your diagnostic now. We’ll find out if it’s the valve body — and fix it properly, before it breaks everything else.

Delayed Engagement in the Morning – Not Just Age

Let’s discuss “Delayed Engagement in the Morning” – it not Just Age mate.

It’s a chilly Brisbane morning( happens sometimes). You hop in the ute, start it up, wait for the idle to settle, then shift into Reverse. Nothing. Three… four… five seconds pass. Finally, with a mild clunk, the gear engages. You roll out and continue your day. By the afternoon, shifts are crisp. So you ignore it.

Big mistake.

That morning delay isn’t just “old age” or “a lazy box.” It’s a clear sign of pressure bleed-off or mechanical wear inside the automatic  transmission — most commonly in the front pump, converter, or valve body. And if you keep driving like nothing’s wrong, you may be setting yourself up for a full trans failure within 12 months.

At Brisbane Tuning & Turbo, this symptom is showing up more and more across high-mileage Hiluxes, Rangers, D-MAXs, Colorados, and Pajeros. We’ve seen it in 6R80s, A750Fs, AW30-40LEs, and RE5R05As. The problem isn’t always severe at first, which is why owners delay repairs. But the root cause isn’t going to fix itself — and the damage will grow.

Let’s break it down.

When you start the vehicle after it’s been sitting overnight, the ATF has drained down into the sump. The pump has to generate pressure quickly to refill the converter and clutch circuits before the transmission can engage a gear. In a healthy transmission, this process takes under one second. If there’s a delay, one of three things is happening: the front pump can’t build pressure fast enough, the valve body is leaking internally, or the converter has drained back and can’t refill quickly due to wear or blocked feed circuits.

D-MAX with the AW30-40LE

We had a 2016 D-MAX in recently with the AW30-40LE. The owner described a consistent five-second delay into Reverse, but only on cold starts. Once warm, it was fine. No fault codes, fluid changed less than 30,000 km ago. On the hoist, we performed a cold pressure test and found initial line pressure took nearly four seconds to stabilise. After teardown, we found pump sealing rings with visible scoring, and the converter had excess varnish on the lock-up circuit. It wasn’t catastrophic — but it was well on the way. With a Redorq TQ+ converter, new front pump seals, and valve body reseal, the vehicle was back to sub-1.5-second cold engagement.

Why does this matter? Because delayed engagement isn’t harmless. When a clutch doesn’t engage quickly, it starts to slip. Even short periods of slip cause heat and glazing. That friction debris ends up in the pan, contaminating the fluid, blocking solenoid screens, and degrading shift quality across the board. The longer you wait, the more likely the problem becomes irreversible without a full rebuild.

Front pump wear

Front pump wear is a common culprit. The pump uses vanes or gears to pressurise fluid, and its internal seals — especially the ones between the stator support and main body — degrade over time. When cold, the hardened seals leak pressure. As the fluid warms up, expansion helps mask the leak. But the wear is still there. And if the converter can’t fill properly, your clutches won’t engage either.

Another silent player is the torque converter itself. In many transmissions, particularly in Rangers and Tritons, converter drainback is a known issue. Overnight, fluid drains out of the converter due to internal wear or check valve failure. On startup, the converter must be refilled before any torque transfer can happen. If there’s also restriction in the feed path — due to varnish, debris, or gasket distortion — the process takes even longer.

Valve body wear also contributes.

A leaking pressure regulator valve, worn converter apply bore, or fatigued separator plate can all delay pressure delivery. In A750F HiLuxes and Prados, we often find cracked gaskets or warped plates causing slow converter feed. This isn’t theory — we’ve vacuum-tested worn valve bodies and seen significant leakage cold, which tightens up as temperatures rise.

Diagnosing delayed engagement properly requires cold testing. That’s why at Brisbane Tuning & Turbo, we always recommend an overnight drop-off for customers experiencing this symptom. Our Redorq Diagnostic process includes a cold start pressure trace, converter fill timing observation, and fluid quality inspection. In some cases, we’ll even record the engagement timing on video for customer reference.

Once diagnosed, the solution depends on what’s actually failing. If fluid is burnt and pressure is low across the board, it may be time for a full rebuild. But most of the time, the fix is targeted. A TQ+ converter upgrade resolves slow fill and lock-up issues. Replacing the valve body with a remanufactured unit addresses cold bore leakage and regulator valve drift. And resealing the front pump restores fast cold pressure rise. In vehicles that tow or are tuned, we often bundle these together for long-term reliability.

Fluid flushes don’t solve this issue

One important note: fluid flushes don’t solve this issue. In fact, a high-pressure flush on a leaking pump or converter can accelerate failure. We’ve had vehicles come in post-flush that went from mild delay to no engagement at all. If engagement delay persists after a service, you’re dealing with mechanical loss — not dirty fluid.

So what should you watch for?

If you notice a delay of more than two seconds when shifting into Drive or Reverse first thing in the morning, especially during colder weather, book a diagnostic. If it happens once a week, that’s still a warning sign. And if you’ve already changed fluid and it didn’t help, stop guessing.

This is a progressive failure — but it’s also a preventable one. Left alone, the clutch packs will wear, debris will spread, and the converter will shed friction material into the system. But caught early, a TQ+ converter, valve body reseal, and fresh pump seals can restore fast engagement and protect your driveline.

Don’t let cold starts fool you. Delayed engagement is a red flag, not just an old-age quirk.

Limp Mode After Load – The One You Can Still Prevent

Limp Mode After Load – The One You Can Still Prevent . You’ve just finished towing a caravan up the Toowoomba Range. The ute was pulling strong — until it wasn’t. Now it’s stuck in third. Throttle response is lazy. The dash throws a generic warning light. You kill the ignition, restart, and it seems okay again. But deep down, you know something’s off.

That’s not a glitch. That’s limp mode — and it’s one of the final warning signs your transmission gives you before failure. The good news? It’s one of the few you can still prevent, if you catch it early.

At Brisbane Tuning & Turbo, we’ve seen this exact scenario play out in hundreds of Rangers, HiLuxes, D-MAXs, and BT-50s. A tradie tows uphill on a hot day. A grey nomad hauls a 2.5-tonne van to Cape York. A weekend warrior puts the foot down with a loaded camper trailer. Then bang — torque converter lock-up fails, a solenoid overheats, or the clutch packs flare. The vehicle goes into limp mode, sometimes with codes, sometimes without. The damage is already in motion, but the customer’s told, “It cleared on restart, must be fine.” It’s not.

Let’s walk through what’s really happening.

Modern utes run high-capacity automatic transmissions built to juggle towing, off-road load, and daily use. But they rely on one critical variable to survive: temperature control. Once your transmission fluid goes above 110°C — and especially if it touches 120–130°C — clutch efficiency drops, converter lock-up starts to slip, and valve body pressure regulation becomes unstable. Over time, that heat leaves damage even if you don’t feel it immediately.

In limp mode, your transmission disables higher gears, throttle control is reduced, and lock-up is disengaged. It’s a defensive move — the ECU or TCM has seen an error it doesn’t trust. Common codes here include P0741, P2757, P0744, or even pressure time faults like P2700. But in many cases, the vehicle stores a soft error with no code — just a freeze frame or memory flag, invisible to basic scan tools.

That’s why so many owners get caught out. They restart the car, it feels fine, and they continue driving. But every time this happens, the clutches slip more. The converter sheds friction material. The solenoids struggle to respond due to varnish buildup. Eventually, it escalates — and by then, the repair cost has doubled.

One of our customers had a 2018 Ford Ranger PX2, 3.2L auto. Towed a 1.0-tonne boat up through the Glass House Mountains. No issues on the way there. On the return trip, mid-climb, limp mode hit. No codes stored. Restarted — drove fine. A local mechanic said, “Probably just fuel.” Three weeks later, hard 1–2 shifts appeared. A month after that, the converter failed entirely — and the valve body had to be replaced too.

Had we seen it after that first limp mode incident, the repair path would’ve been far simpler. Converter upgrade. Cooler install. Dyno pressure mapping. That job went from $3,900 to $8,200 because the warning wasn’t understood.

So what causes it?

It’s almost always one of three things: torque converter slip, solenoid pressure dropout, or clutch overheat. The converter clutch might be failing to engage cleanly under load due to glazing or fluid breakdown. The valve body might be bleeding pressure through worn regulator circuits or cracked separator plates. Or a solenoid might be jamming under thermal stress, especially if the transmission hasn’t had a fluid change in 60,000+ km.

In HiLuxes and Prados with the A750F, this issue is especially common when towing without an upgraded cooler. The factory thermal limits are tight. Once ATF hits 120°C and load remains high, the TCM pulls the plug. If you’ve also got a remap that’s raised load or torque requests, you’re even more vulnerable. Same applies to Isuzu D-MAX AW30 boxes — they often overheat quietly and log clutch fill time errors before eventually hitting limp.

The good news is this: it’s preventable.

When caught early, limp mode after load is a warning — not a death sentence. At Brisbane Tuning & Turbo, we use the Redorq Scan + Dyno Diagnostic to recreate your exact conditions. If your converter clutch is slipping under load, we’ll catch it. Yet if it is your valve body’s bleeding pressure during gear changes or thermal events, we’ll see it. Even if your solenoids are outside expected current range or timing windows, we’ll log it.

From there, the fix is surgical. For converter slip, we upgrade to a heavy-duty Redorq TQ+ unit. If there is pressure loss, we replace the valve body with a remanufactured Redorq VB tested for cold and hot seal integrity. For thermal issues, we install an auxiliary trans cooler, calibrated for tow use. In many cases, we also recalibrate the ECU to reduce unnecessary lock-up during climb phases — especially in tuned vehicles where extra torque is already increasing converter stress.

You don’t need to guess, and you don’t need to wait for a full failure.

A typical preventative job costs between $3,500 and $5,000 — far less than a complete trans rebuild. And the best part? We apply 100% of the diagnostic cost toward the fix, so you’re never paying twice.

If your ute went into limp mode after towing, even once, book your diagnostic today. That moment was your gearbox asking for help. If you listen now, you can save it.

Transmission Trouble in Your Ute? These 10 transmission Faults Are Warning Signs — Not Random Events

After thousands of dyno runs, pressure tests, and pan inspections, one thing is clear: ute transmissions don’t just fail. They warn you first. Slipping lock-up, delayed engagement, harsh cold shifts — they’re not quirks, they’re signals. If you’ve read through the ten most common transmission faults affecting Aussie utes, you now know what those signals really mean.

From P0741 torque converter clutch failures to cold-start valve body leaks and post-tow limp modes, each of these issues has a mechanical root cause. And while the platform changes — whether it’s a Ranger’s 6R80, a HiLux A750F, or an Isuzu AW30 — the pattern is often the same. Pressure is lost. Heat builds. Friction material sheds. Then the clutches give out, or the converter locks up permanently. And the average driver is told to just replace the whole transmission.

That’s not how we do it at Brisbane Tuning & Turbo.

We built this series not just to explain the faults, but to educate ute owners — and help them avoid the $8,000+ repair bills that come when these symptoms are ignored or misdiagnosed. If you’ve ever had your vehicle scanned and heard “no codes found,” or been told the delay is “normal for age,” chances are the root cause was missed entirely.

Each of the top 10 transmission faults

Each of the top 10 faults we covered has a proper repair path — and that path starts with correct diagnosis. Not guesswork. Not parts swapping. Diagnosis.

Our Redorq Scan + Dyno Diagnostic packages are engineered to reproduce your fault under real load. We use thermal pressure testing, converter slip analysis, and valve body vacuum checks to pinpoint exactly what’s wrong — before committing to parts. And if you go ahead with the repair, that diagnostic cost is applied in full toward your converter, valve body, or full transmission work.

Let’s say your ute throws a P2757 after towing. That’s not a generic solenoid fault. It’s a converter or pressure regulator failure waiting to escalate. Or maybe your HiLux is showing harsh 2–3 shifts cold, and it smooths out warm — that’s your A750F valve body leaking when the seals contract overnight. Or you’ve noticed a slight shudder at 80 km/h on the highway with no codes at all — welcome to converter clutch glazing, a silent killer of torque transfer and fuel economy.

All of these can be caught early. Absolutely, all automatic transmissions can be repaired without replacing the whole box.

Can I Keep Driving? Transmission Fault Severity Guide

One of the first questions customers ask us after a transmission fault appears is simple:

“Can I keep driving?”

The answer depends entirely on what is actually failing.

Some transmission problems can be monitored for a short period while repairs are organised. Others can turn a relatively inexpensive repair into a complete transmission rebuild within a surprisingly short distance.

The guide below provides a general indication of how urgently the most common faults should be investigated.

P0741 – Torque Converter Clutch Performance

Risk Level: ★★★★★ Very High

If your vehicle is showing a P0741 code, the torque converter clutch is already slipping more than the transmission control module considers acceptable. Every kilometre driven generates additional heat inside the converter, contaminates the transmission fluid with friction material, and increases the likelihood of damaging the valve body and clutch packs.

Can you drive it?

Yes, for a short distance if absolutely necessary.

Should you continue towing?

No. Continuing to tow can rapidly accelerate internal damage.

P2714 – Pressure Control Solenoid D Performance

Risk Level: ★★★★☆ High

Despite the description, P2714 is commonly associated with valve body hydraulic problems rather than an electrical solenoid failure.

The vehicle may still drive reasonably well, but unstable hydraulic pressure causes increasing clutch wear every time a gear change occurs.

Can you drive it?

Usually yes.

Should you delay repairs?

No. Early valve body repairs are significantly less expensive than repairing damaged clutch packs.

P2757 – Torque Converter Clutch Pressure Control Solenoid Stuck On

Risk Level: ★★★★★ Very High

This fault frequently indicates that the converter clutch is remaining applied when it should release.

Driving in this condition creates excessive heat, harsh engagement, and rapid converter deterioration.

Can you drive it?

Only if absolutely necessary.

Avoid heavy traffic, steep climbs and towing until the fault has been diagnosed.

P2700 / P2703 – Friction Element Apply Time Fault

Risk Level: ★★★★☆ High

These faults indicate the transmission is taking longer than expected to apply one or more clutch packs.

The longer this continues, the more friction material is lost from the clutches.

Can you drive it?

Yes, but repairs should be organised as soon as practical.

Ignoring these codes often converts a valve body repair into a complete rebuild.

P0744 – Intermittent Torque Converter Clutch Performance

Risk Level: ★★★★☆ High

This code often represents the early stages of torque converter clutch failure.

Although symptoms may come and go, the internal clutch continues wearing every time the converter attempts to lock.

Can you drive it?

Yes, cautiously.

However, avoid towing or prolonged highway driving until the transmission has been properly assessed.

Converter Shudder Without a Fault Code

Risk Level: ★★★★☆ High

No fault code does not necessarily mean no problem.

Persistent converter shudder usually indicates the clutch is already slipping and generating heat.

This is one of the best opportunities to prevent a major transmission failure because the problem is often caught before widespread internal damage occurs.

Harsh Shifting Only When Cold

Risk Level: ★★★☆☆ Moderate

Cold shift shock commonly indicates early hydraulic leakage within the valve body.

Although the transmission may feel normal once warm, repeated harsh engagement gradually increases wear throughout the driveline.

The sooner the hydraulic issue is corrected, the better the long-term outcome.

Delayed Engagement Into Drive or Reverse

Risk Level: ★★★★☆ High

A delay selecting Drive or Reverse is rarely just an inconvenience.

It usually indicates pressure loss caused by front pump wear, valve body leakage, or torque converter drain-back.

These faults almost always become progressively worse if ignored.

Limp Mode After Towing or Heavy Load

Risk Level: ★★★★★ Critical

Limp mode is the transmission’s way of protecting itself from further damage.

If your vehicle repeatedly enters limp mode after towing, climbing long hills or carrying heavy loads, continuing to drive without diagnosis significantly increases the risk of complete transmission failure.

Avoid further towing until the underlying cause has been identified.

Failure signs

Automatic transmissions almost always give warning signs before they fail completely. Small symptoms such as shudder, delayed engagement, harsh cold shifts or occasional fault codes are often the gearbox asking for attention—not replacement.

The earlier the underlying cause is diagnosed, the greater the chance of repairing a torque converter or valve body before the damage spreads throughout the rest of the transmission.

Transmission Maintenance That Really Makes a Difference

When people think about automatic transmission maintenance, they usually think about one thing—changing the transmission fluid.

While regular fluid servicing is certainly important, it’s only one part of keeping a transmission healthy. In reality, the longest-lasting automatic transmissions are usually those that are operated within their design limits, kept cool, and diagnosed early when small problems first appear.

The biggest enemy of any automatic transmission is heat.

Every automatic transmission relies on hydraulic pressure generated by transmission fluid. That same fluid also lubricates bearings, cools internal components, operates the torque converter and applies the clutch packs. As temperatures rise, the fluid gradually loses its ability to lubricate and transfer hydraulic pressure efficiently. At the same time, seals harden, clutch materials deteriorate faster and varnish begins forming inside the valve body.

For vehicles that regularly tow caravans, boats, horse floats or work trailers, controlling transmission temperature is one of the most valuable investments you can make. An appropriately sized auxiliary transmission cooler can significantly reduce operating temperatures during heavy towing and help slow the wear of both the torque converter and the valve body.

Regular fluid servicing is also important—but only when performed correctly.

Every manufacturer specifies a transmission fluid that has particular friction characteristics and viscosity. Using the wrong fluid, mixing different specifications or overfilling the transmission can create shift quality problems that did not previously exist.

Equally important is understanding that fresh fluid cannot repair worn hydraulic components. If a transmission already has valve body wear, internal leakage or a deteriorating torque converter clutch, changing the fluid alone will not reverse the mechanical damage. Servicing is preventative maintenance, not mechanical repair.

Towing habits also have a major influence on transmission life.

Long climbs at low road speeds, repeated heavy acceleration while towing and allowing the transmission to constantly hunt between gears all generate unnecessary heat. In many situations, manually selecting an appropriate gear before a long climb allows the transmission to maintain stable hydraulic pressure and reduces repeated clutch application and release.

Drivers should also pay attention to changes in vehicle behaviour.

A slight converter shudder, a delayed engagement on cold mornings or a harsh shift that only appears occasionally may seem insignificant, but these are often the earliest warning signs that something inside the transmission is beginning to wear. Diagnosing these symptoms early frequently prevents far more expensive repairs later.

Modern engine tuning should also be approached sensibly.

Well-calibrated tuning can improve driveability and towing performance without compromising transmission reliability. However, poorly calibrated tunes that dramatically increase torque without considering transmission operating strategies can overload the torque converter and clutch packs. Extra engine torque should always be matched with appropriate transmission calibration and realistic expectations of the vehicle’s intended use.

One maintenance item that is often overlooked is software.

Many manufacturers periodically release updated transmission calibration files that improve shift quality, converter lock-up strategy or pressure control. Depending on the vehicle, ensuring the transmission has the latest available software may improve operation and reduce unnecessary wear.

Finally, don’t ignore small changes simply because the vehicle is still driving.

Automatic transmissions rarely fail without warning. Most give owners weeks or months of early symptoms before major damage occurs. Paying attention to those early warning signs—and investigating them before they become serious—is often the difference between replacing a single component and rebuilding the entire transmission.

Good maintenance isn’t about trying to make an automatic transmission last forever. It’s about reducing unnecessary wear, controlling heat, using the correct fluids and identifying developing problems before they become expensive failures. Combined with sensible driving habits and timely diagnosis, these simple practices can significantly extend the service life of almost any modern automatic transmission.

Frequently Asked Questions About Transmission Faults

Are these faults normal in 4WDs?
Yes — especially in vehicles used for towing or heavy loads.

Can a transmission service fix these problems?
Not usually. Services help fluid condition, but not internal wear or pressure loss.

How early should I act?
As soon as symptoms appear — early diagnosis can prevent major repairs.

Do I need a full rebuild?
Not always. Many issues can be fixed with converter or valve body repairs if caught early.

All of them can be repaired without replacing the whole box.

So here’s the takeaway: if your automatic transmission feels different — even just a little — don’t wait. Modern utes are smarter than we give them credit for. Nowadays, vehicles store pre-failure flags. They adjust shift timing. They throw soft codes. And if we catch those early, we can fix what’s failing, not what’s already failed.

Transmission failure isn’t inevitable. But it is progressive. It starts as heat. Then becomes pressure loss. Then becomes damage.

The best time to act is now — when it’s just a code, a delay, or a vibration. Not when it’s a full teardown.

Book your Redorq diagnostic today. Let’s catch the problem before it catches you.

In our work we use parts supplied to us by companies like Transgo (USA) and for CVT transmissions, we use Transpartsnow (USA).
